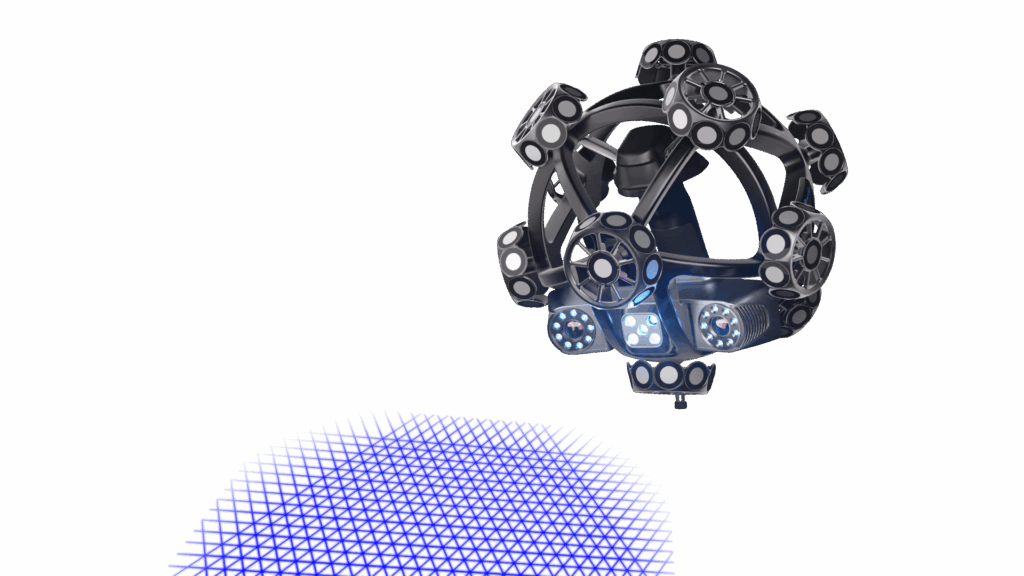

SCANTECH TrackScan Sharp S

Built for Big Jobs

Scan large objects with unmatched speed, accuracy, and freedom—no targets required.

Get Pricing

Get Pricing Sent to You Today

Thank you for your interest in Hawk Ridge Systems! We will be in touch with you shortly.

While you are waiting, check out our Resource Center or read our Blog!
success

Scan Bigger, Move Faster

The SCANTECH TrackScan Sharp S redefines high-volume 3D scanning. Built for industrial-scale applications, this system eliminates the need for targets and enables fast, wireless scanning over an impressive 135 cubic meters. Whether capturing massive components or intricate details on large surfaces, TrackScan delivers precision, flexibility, and convenience in one complete system.

Why Choose SCANTECH TrackScan Sharp S?

  • Up to 81 blue laser lines for fast scanning, with 17 additional lines for fine detail capture.
  • No targets required—optical tracking system monitors the scanner’s position
  • Wireless scanning and probing options
  • High-resolution scanning for fine details
  • Ideal for aerospace, automotive, and industrial-scale scanning
  • Supports SCANTECH’s proprietary scanning and metrology software, such as ScanViewer, for data processing and analysis.

Unmatched Range and Resolution

TrackScan Sharp S in Action

Optical 3D Scanning with TrackScan Sharp S

Discover how this advanced system revolutionizes large-scale measurement with targetless tracking technology and metrology-grade precision.

Key Features & Benefits

Wireless 3D Scanning

Collect and stream scan data over WiFi for maximum freedom.

High Resolution & Accuracy

High-resolution scanning with metrology-grade precision, suitable for capturing fine details on large-scale objects.

Adjustable Scanning Modes

Switch between grid, hyperfine, or single-line laser configurations.

Large Volume Coverage

Capture up to 135m³ with a single tracker; sync multiple trackers for even more.

Fast Data Capture

4.86 million points per second from 99 blue laser lines.

Targetless Optical Tracking

No targets needed—optical tracker monitors scanner position.

Mixed Scanning & Probing

Optional wireless touch probe for hybrid inspection workflows.

Technical Specifications

Specification
Value
Laser Source
81 Blue Laser Lines (standard mode) + 17 Blue Laser Lines (fine mode) – Class II
Mesh Resolution
High-resolution scanning optimized for capturing fine details on large-scale objects.
Volumetric Accuracy
Volumetric accuracy of 0.048 mm at 10.4 m³, certified under VDI/VDE 2634 standards.
Object Size Range
Optimized for large-scale objects, typically 1,000 mm and larger.
Measurement Rate
4.86 million pts/sec
Field of View
Large field of view supporting scanning at distances up to 8.5 meters.
Depth of Field
Extended depth of field supporting scanning at distances up to 8.5 meters.
Tracking Method
Optical Camera with optional targets
Certifications
ISO 17025, VDI/VDE 2634

Frequently Asked Questions

How does the wireless mode work?

The system uses external WNICs and onboard processors for wireless data transfer, enabling real-time 3D coordinate capture when connected to scanning software.

What’s the benefit of using blue lasers?

Blue lasers reduce noise and perform better on reflective surfaces like chrome or polished aluminum.

Do I need to place targets on the part?

No. The system uses an optical tracker to locate the scanner. However, you can use targets in hard-to-see areas to improve tracking or align multiple scans.

Can I scan large structures or equipment?

Yes. The TrackScan can cover up to 135 cubic meters. For larger jobs, multiple trackers can be synced for seamless scanning.

What if I need to capture hole dimensions or edges?

You can use the optional wireless touch probe to complement your scans with exact point data for those features.

Excellence Beyond Hardware

Technology is powerful. Partnership makes it transformative. With Hawk Ridge Systems, you get both—cutting-edge scanning capability backed by North America’s premier engineering solutions team, dedicated to turning your investment into remarkable results.

Expert Support
Get a personalized consultation from Hawk Ridge’s scanning experts

Try Before You Buy
Test TrackScan on your own components

Comprehensive Training
Get your team operational quickly with personalized onboarding

Seamless Integration
We’ll help you connect with your CAD or inspection workflow

Keep On Learning

SCANTECH

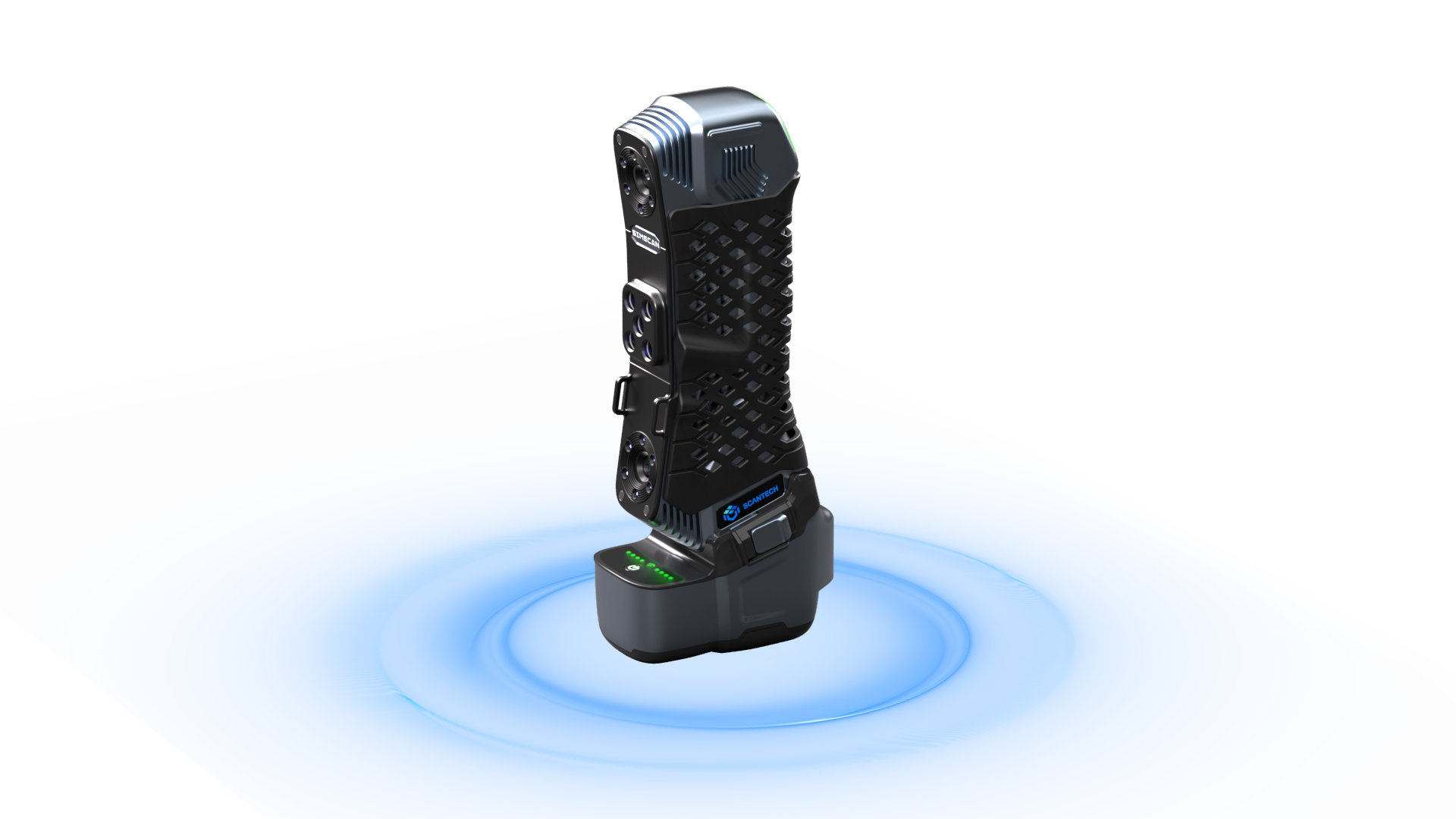

ScanTech: SIMCSCAN-E
