SCANTECH NimbleTrack

Compact Power, Total Freedom

High-precision wireless 3D scanning with unmatched portability.

Get Pricing

Get Pricing Sent to You Today

Thank you for your interest in Hawk Ridge Systems! We will be in touch with you shortly.

While you are waiting, check out our Resource Center or read our Blog!
success

Power Meets Portability

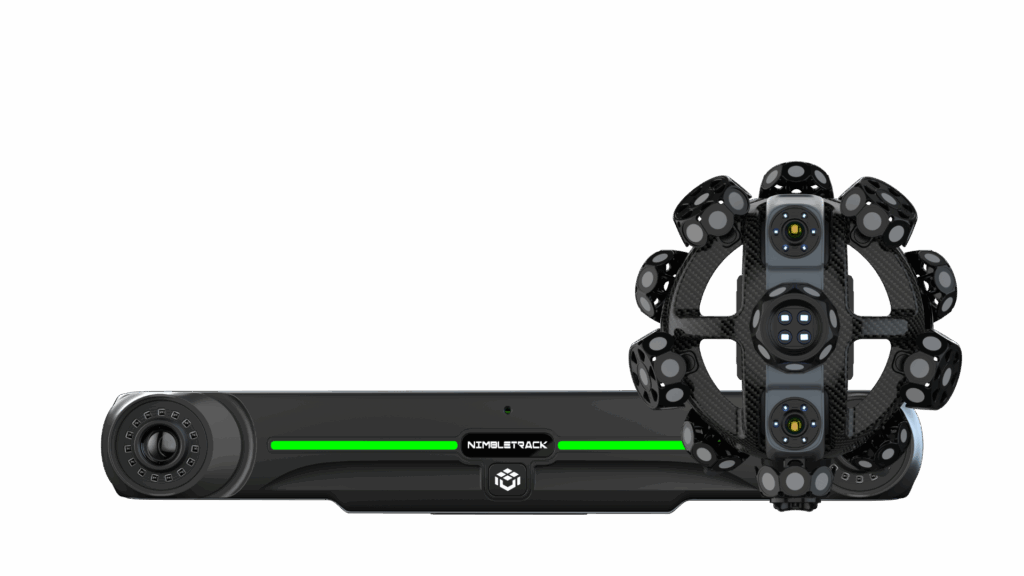

The SCANTECH NimbleTrack redefines portable 3D scanning with its optical tracker and compact form factor. Whether you’re capturing large components in the field or scanning fine details on the shop floor, the NimbleTrack delivers accurate results—no targets required. Its wireless capabilities and ultra-fast setup make it ideal for inspection, reverse engineering, and manufacturing workflows.

Why Choose NimbleTrack?

With its innovative optical tracking system, the NimbleTrack eliminates traditional scanning constraints while delivering metrology-certified results in virtually any environment. Whether you’re capturing data in a crowded production facility or conducting field inspections at remote locations, this system adapts to your workflow—not the other way around.

  • Completely wireless scanning with optical tracker
  • Targetless operation with optional use of markers
  • Ultra-light and portable—fits in a single hard case
  • Metrology-grade resolution up to 0.02mm
  • Ideal for on-site inspections, quality control, and reverse engineering
  • Compatible with SCANTECH’s DefinSight software

Unmatched Scanning Performance

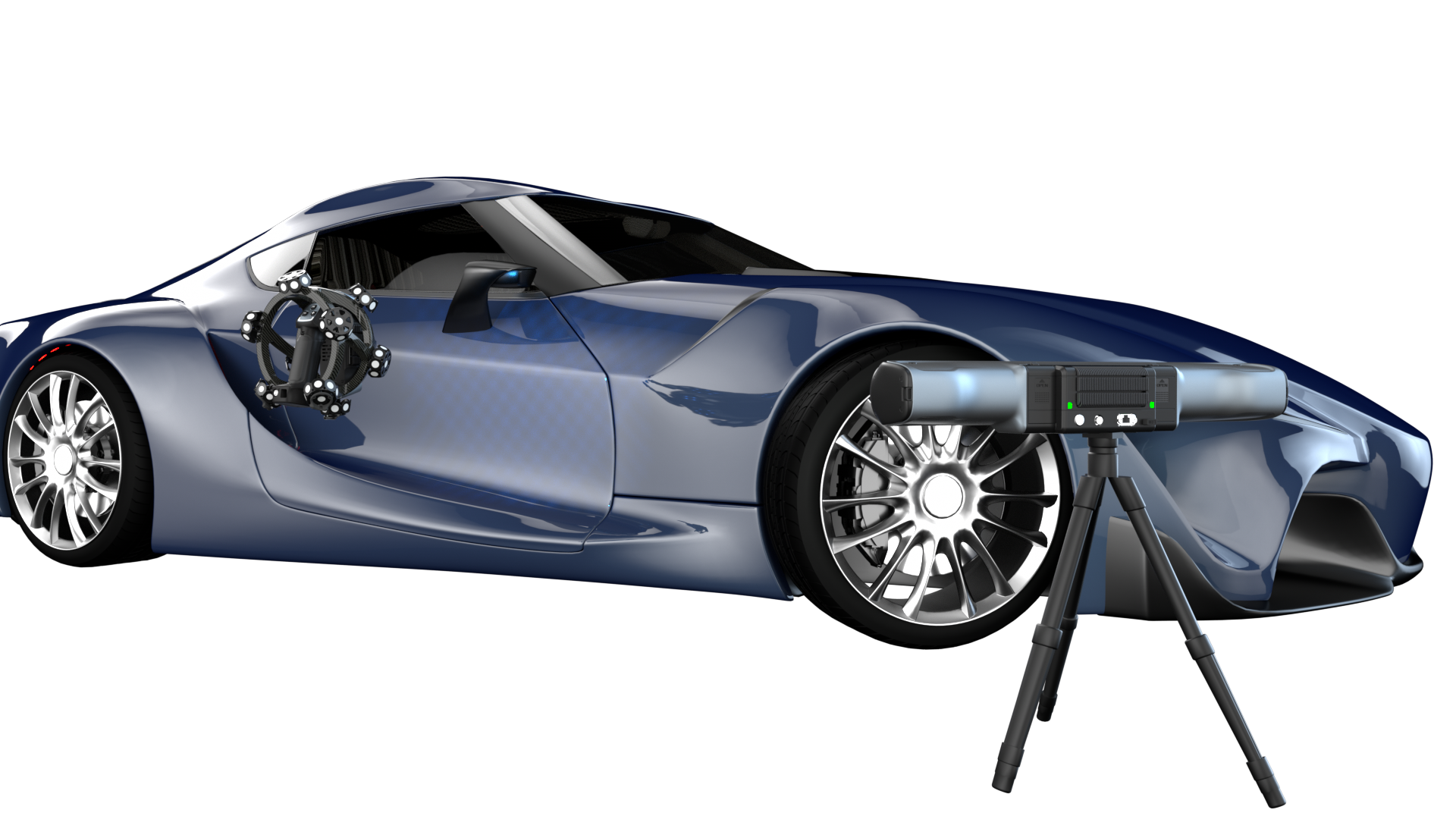

NIMBLETRACK 3D SCANNING SYSTEM (23)

Key Features & Benefits

Wireless 3D Scanning

Collect and stream scan data over WiFi for maximum freedom.

Ultra-High Resolution

Capture fine details at up to 0.02mm resolution.

Adjustable Scanning Modes

Choose from grid, hyperfine, or single-line scanning modes.

Rapid Deployment

System packs into one hardcase and deploys in under 5 minutes.

Fast Capture Speed

4.9 million points per second via 17 blue lasers.

Targetless Scanning

Optical tracking eliminates the need for stickers or dots.

NimbleTrack In Action

Scanning a Car Frame with NimbleTrack

See the SCANTECH NimbleTrack’s exceptional performance in real-world applications. This video demonstrates how this compact, wireless system captures precise 3D data without targets or cables. Watch as technicians effortlessly scan everything from intricate components to full-sized vehicle frames, showcasing the system’s versatility, speed, and metrology-grade accuracy in even the most challenging environments.

Technical Specifications

Specification
Value
Laser Source
17 Blue Lasers – Class II
3D Point Resolution
Up to 0.02mm
Volumetric Accuracy
0.044mm + 0.012mm/m
Object Size Range
Small – Large
Field of View
500 x 600 mm
Scanning Speed
4.9 million pts/sec
Tracking Method
Optical Camera with optional targets
Weight
Scanner: 1.3kg, I-Tracker: 2.2kg
Operating Temp
14–104°F
Certifications
ISO 17025, VDI/VDE 2634

Frequently Asked Questions

How does the wireless mode work?

The system uses built-in Wi-Fi connectivity to allow wireless streaming of scan data. Once connected to scanning software via Wi-Fi, data can be captured in real time.

What’s the benefit of using blue lasers?

Blue lasers reduce noise and perform better on reflective surfaces like chrome or polished aluminum.

Do I need to place targets on the part?

No. The system uses an optical tracker to locate the scanner. However, you can use targets in hard-to-see areas to improve tracking or align multiple scans.

Can I scan large objects?

Yes. While the I-Tracker has a limited scanning volume per position, you can reposition it or use multiple trackers to cover larger spaces

Is the NimbleTrack system portable?

Absolutely. It packs into a single hard case and can be deployed in minutes—ideal for mobile inspections and fieldwork.

Excellence Beyond Hardware

Technology is powerful. Partnership makes it transformative. With Hawk Ridge Systems, you get both—cutting-edge scanning capability backed by North America’s premier engineering solutions team, dedicated to turning your investment into remarkable results.

Expert Support
Access our dedicated team of 3D scanning specialists

Try Before You Buy
Test NimbleTrack on your actual parts with customized demonstrations

Comprehensive Training
Get your team operational quickly with personalized onboarding

Seamless Integration
Connect NimbleTrack to your existing CAD, CAM, and inspection workflows
