SCANOLOGY SIMSCAN–E
Precision in Your Palm

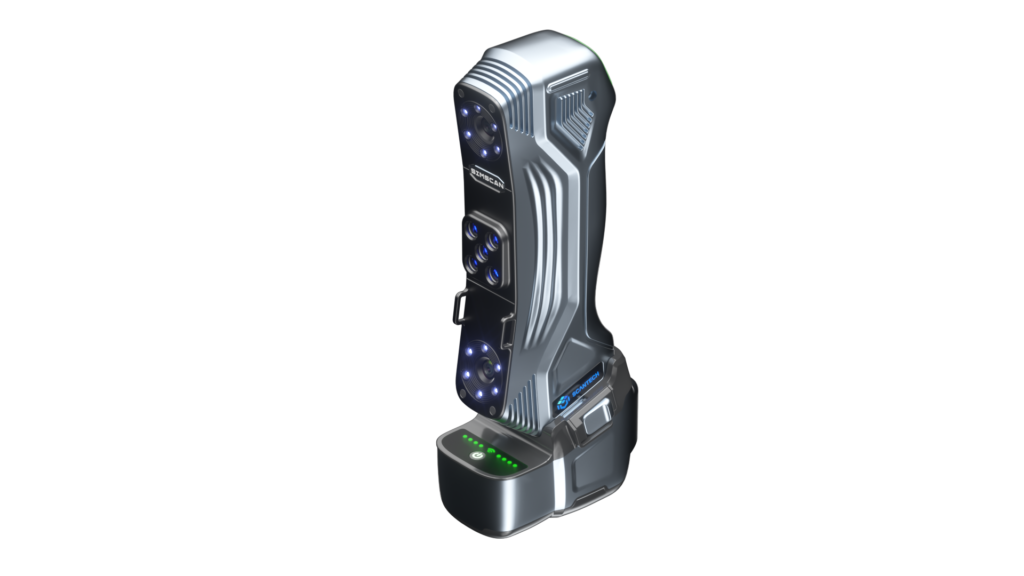

The intelligent, wireless and palm-sized 3D scanner
Revolutionary Scanning Technology in Your Hand
The SCANOLOGY SIMSCAN-E delivers professional-grade 3D scanning in a compact, handheld device. Capturing 6.3 million points per second with blue laser technology, it easily handles challenging surfaces that frustrate conventional scanners.
Switch between multiple scanning modes to optimize your workflow—from rapid surface capture to microscopic detail resolution as fine as 0.02mm. The intelligent target tracking system ensures flawless data integration, while ISO certification guarantees results that meet industry standards.
Experience true freedom with wireless connectivity, allowing unrestricted movement around objects while streaming data in real-time. At just 600 grams, the SIMSCAN-E delivers industrial-grade performance in a remarkably portable package.
Why Choose SIMSCAN-E?
- Freedom from cables and tethering
- Capture details down to 0.02mm resolution
- Grid pattern for large areas, hyperfine for details, single-line for deep recesses
- Ultra-lightweight at 600 grams
- 6.3 million points per second via 63 laser lines
- Rugged metal construction for field use
Carry Power, Not Weight.
Portable & Powerful
Weighing only 600 grams and designed to fit in your hand, you can scan for long periods of time without fatigue and the compact form makes it ideal for travel – the entire case can fit into a carry-on bag with room to spare.
No Surface Left Behind
Scan difficult surfaces, deep holes, and fine details using bespoke scanning modes. Grid pattern is ideal for larger areas, while hyperfine mode coaxes out maximum detail, and single line mode helps scan into deep holes & recessed areas.
Built to Last
The robust metal case construction place it among the most durable scanners ever made and a wide operating temperature range broadens potential environments & applications.
See the Invisible
With mesh resolution up to 0.02 mm, the SIMSCAN-E is perfect for applications requiring high detail. 63 laser lines capture 6.3 million points per second, allowing the SIMSCAN–E can scan large parts quickly.
SIMSCAN-E In Action
Precision Engineering Meets Portability
Watch the SIMSCAN-E capture 6.3 million points per second with blue laser precision. This 600-gram handheld device effortlessly handles challenging surfaces, switches between scanning modes, and delivers 0.02mm detail resolution—all while streaming data wirelessly in real-time for unrestricted movement around objects.
Key Features & Benefits
Wireless 3D Scanning
Collect and stream scan data over WiFi for maximum freedom.
High Resolution & Accuracy
With mesh resolution up to 0.02 mm, the SIMSCAN-E is ideal for applications requiring high detail.
Adjustable Scanning Modes
Switch between grid, hyperfine, or single-line laser configurations.
Fast Data Capture
4.86 million points per second from 99 blue laser lines.
Lightweight and Compact
Weighing only 600 grams and designed to fit in your hand, you can scan for long periods of time without fatigue
Durable Construction
The robust metal case construction place it among the most durable scanners ever made and a wide operating temperature range broadens potential environments & applications
Technical Specifications
| Specification | Value |
|---|---|
| Laser Source | 81 Blue Laser Lines (standard mode) + 17 Blue Laser Lines (fine mode) – Class II |
| Mesh Resolution | High-resolution scanning optimized for capturing fine details on large-scale objects. |
| Volumetric Accuracy | Volumetric accuracy of 0.048 mm at 10.4 m³, certified under VDI/VDE 2634 standards. |
| Object Size Range | Optimized for large-scale objects, typically 1,000 mm and larger. |
| Measurement Rate | 4.86 million pts/sec |
| Field of View | Large field of view supporting scanning at distances up to 8.5 meters. |
| Depth of Field | Extended depth of field supporting scanning at distances up to 8.5 meters. |
| Tracking Method | Optical Camera with optional targets |
| Certifications | ISO 17025, VDI/VDE 2634 |
Frequently Asked Questions
The system uses external WNICs and onboard processors for wireless data transfer, enabling real-time 3D coordinate capture when connected to scanning software.
Blue lasers reduce noise and perform better on reflective surfaces like chrome or polished aluminum.
No. The system uses an optical tracker to locate the scanner. However, you can use targets in hard-to-see areas to improve tracking or align multiple scans.
You can use the optional wireless touch probe to complement your scans with exact point data for those features.
Excellence Beyond Hardware
Technology is powerful. Partnership makes it transformative. With Hawk Ridge Systems, you get both—cutting-edge scanning capability backed by North America’s premier engineering solutions team, dedicated to turning your investment into remarkable results.
Expert Support
Access our dedicated team of 3D scanning specialists
Try Before You Buy
Test SIMSCAN-E on your actual parts with customized demonstrations
Comprehensive Training
Get your team operational quickly with personalized onboarding
Seamless Integration
Connect SIMSCAN-E to your existing CAD, CAM, and inspection workflows
