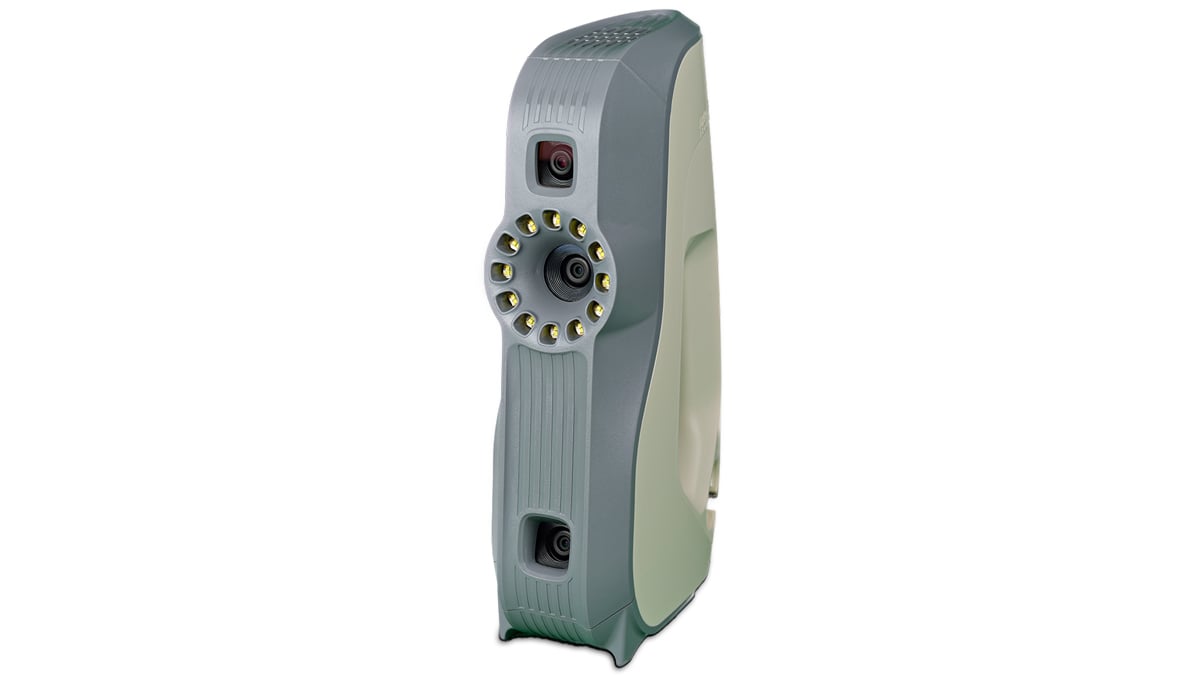

Artec Eva 3D Scanner

As low as

$19,800.00

The Artec EVA is fast, affordable, and supremely versatile. The light, portable EVA 3D scanner lets you capture 3D scan data for a large variety of objects with ease.

SKU
10205


Fast, Affordable, and Supremely Versatile 3D Scanner

The Artec EVA is ideal for capturing medium to large objects and takes our award for the most versatile 3D scanner of all time. If you need unrestricted mobility, the EVA is extremely light and allows you to scan on battery power. You can also work with multiple scanners by daisy-chaining it with other EVAs for 360-degree motion capture or combining data with any mix of other Artec scanners.

The EVA scanner is based on structured light, rather than laser-based, and allows you to double up on the detail of your data with Artec’s revolutionary HD Mode. With its versatility and portability, it's easy to see why EVA is the most popular professional handheld scanner in the world.

Technical Specifications
Scanner Type: Handheld
3D Point Accuracy (up to): 0.1 mm
3D Resolution (up to): 0.2 mm
3D Accuracy Over Distance (up to): 0.1 mm + 0.3 mm/m
HD Mode: Yes
Hybrid Geometry and Texture Tracking: Yes
Data Processing Algorithms: Geometry and Texture Based
Working Distance: 0.4 - 1.0 m
Volume Capture Zone: 61,000 cm³
Linear Field of View (HxW) at Closest Range: 214 x 148 mm
Linear Field of View (HxW) at Farthest Range: 536 x 371 mm
Angular Field of View (HxW): 30 × 21°
Ability to Capture Texture: Yes
Texture Resolution: 1.3 mp
Colors: 24 bpp
3D Reconstruction Rate for Real-Time Fusion (up to): 16 fps
3D Reconstruction Rate for 3D Video Recording (up to): 16 fps
Data Acquisition Speed (up to): 18 min points/s
3D Exposure Time: 0.0002 s
2D Exposure Time: 0.00035 s
3D Light Source: Flashbulb
2D Light Source: White 12 LED Array
Position Sensor: n/a
Display / Touchscreen: USB Streaming Through External Computer
Multi-Core Processing: On External Computer
Interface: 1 x USB 2.0, USB 3.0 Compatible
Internal Hard Drive: n/a
Computer Requirements
Supported OS: Windows 7,8 or 10 x64
Computer Recommendations: Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with 8+ GB VRAM, CUDA 6.0+
Minimum Computer Requirements:
- HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 2 GB VRAM
- SD: Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM
Output Formats
3D Mesh Output: OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB
CAD Output: STEP, IGES, X_T
Measurements Output: CSV, DXF, XML
Power Source and Dimensions
Power Source: AC Power or External Battery Pack
Dimensions (HxDxW): 262 x 158 x 63 mm
Weight: 0.9 kg / 2 lb

HOW CAN HAWK RIDGE SYSTEMS HELP?

With extensive real-world experience and a large 3D scanner lineup from multiple brands, the Hawk Ridge team will work with you to evaluate your specific needs and use case in order to ensure we recommend the right system for you. Our dedicated support specialists and flexible training programs will ensure you get the most from your 3D scanning investment.

solidworks simulation fea softwaresolidworks simulation fea software
artec 3d services
SERVICES

MORE THAN JUST A PROVIDER

Not ready for an in-house solution yet? Hawk Ridge can provide scanning, scan-to-CAD, and inspection services. Our extensive fleet of scanners can tackle virtually any job, regardless of size, and our modelling experts use the industry’s most powerful tools to get the job done fast.

TRAINING

IMPROVE PERFORMANCE THROUGH TAILORED LEARNING

Every company is different, and when it comes to training for 3D scanning, one size doesn’t fit all. Hawk Ridge Systems can tailor a training plan to focus on the needs of your application.

artec 3d training training
SUPPORT

TOP-RANKED SUPPORT, COMMITTED TO YOUR SUCCESS

Our scanning support specialists are 100% dedicated to our 3D scanning applications, have passed rigorous testing standards, and have extensive experience using our scanning products in the real world.

artec 3d support

FREQUENTLY ASKED QUESTIONS

What is HD mode?
HD mode employs advanced machine learning algorithms to filter and process the raw scan data, resulting in significantly higher resolution (ability to capture detail) and noise reduction at the expense of increased computer power and processing time.
How large of objects can I scan with the Artec EVA?
The EVA does not have a hard size limit, so this depends largely on your available computer power. The EVA is generally considered a great fit for vehicle-sized objects and smaller, though larger objects are perfectly feasible.
What kind of computer do I need for processing scans?
Artec scanners do not require an especially high-performance computer, though investing more in certain components - like the GPU - can result in greatly reduced processing times.
Is the EVA good for scanning people or anatomy?
Yes. In fact, the method of capture used by Artec’s EVA and Leo scanners is exceptionally conducive to scanning people. The alignment methods allow them to tolerate the micro-movements associated with live models, setting them apart from many other scanners. Experienced Artec users can routinely scan a complete human body in 1-2 minutes.
Can the EVA be used with targets or stickers?
Yes. While the main draw of Artec’s technology is their ability to scan without targets, they are compatible with various 3rd party photogrammetry kits which allow them to be used with targets for greatly enhanced dimensional accuracy.
Can the EVA be battery powered?
EVA is able to run off a belt-worn battery pack (sold separately) or standard AC power.
