Post-Processing

Fast, Reliable Post-Curing at Production Scale

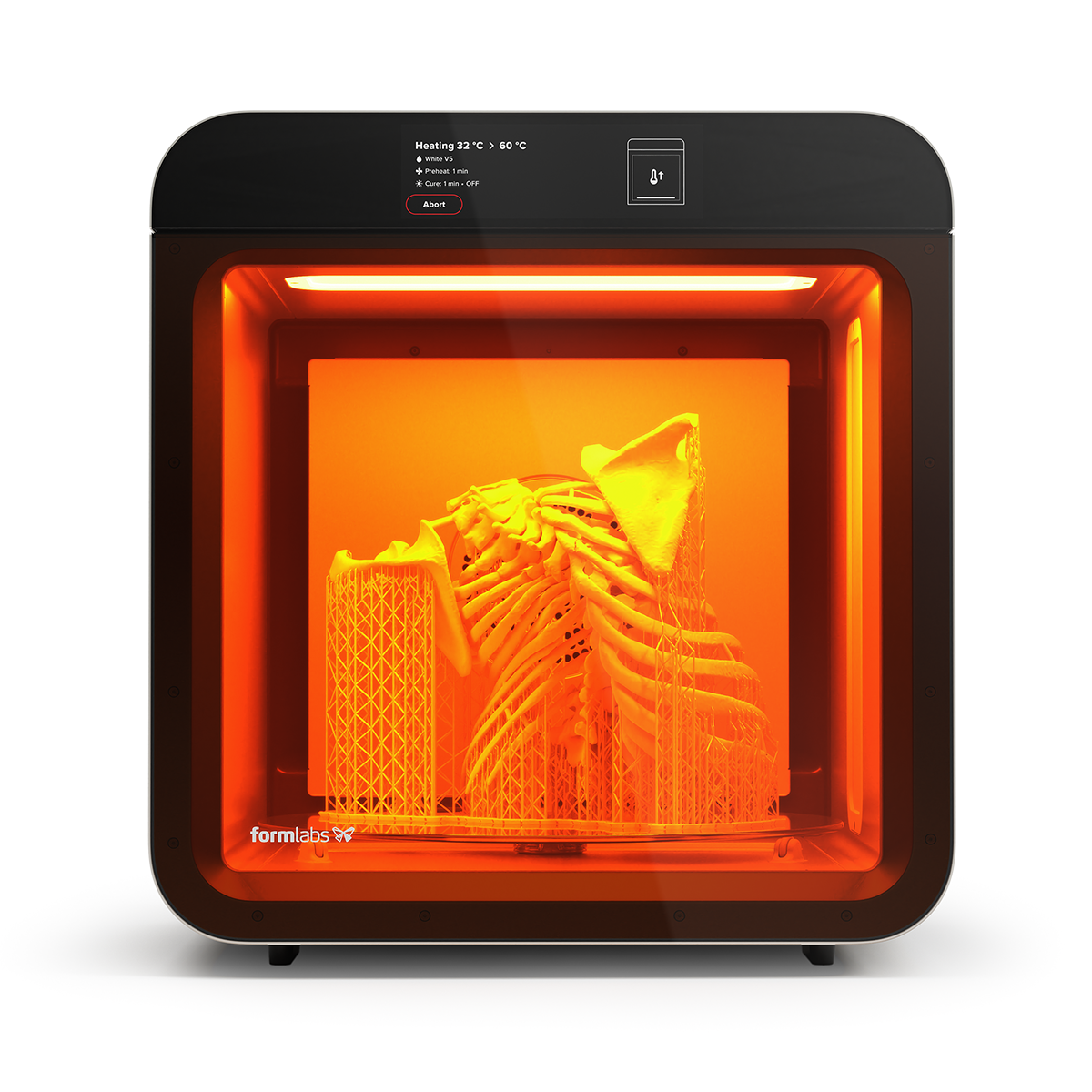

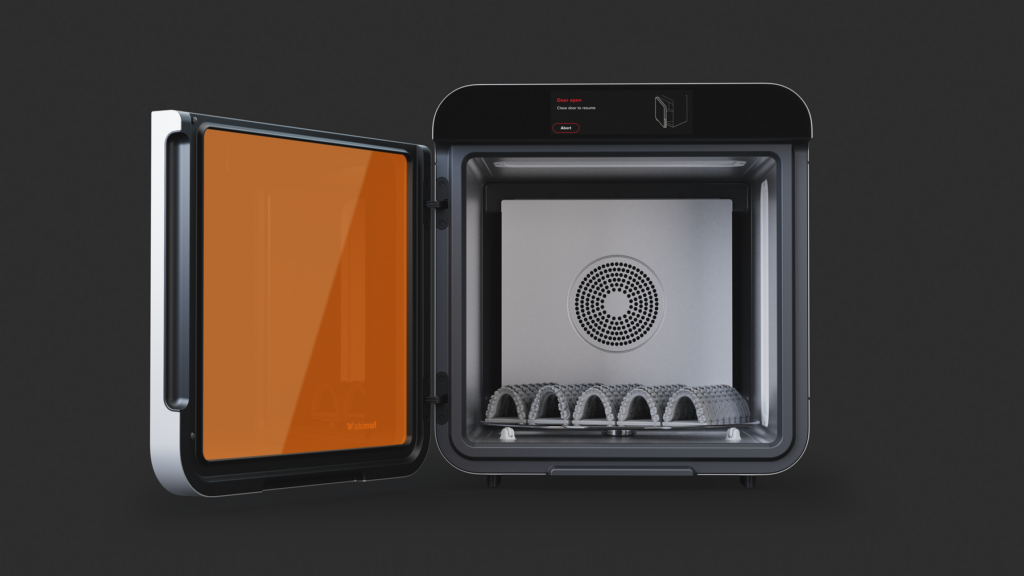

Form Cure L V2 brings validated, production-scale post-curing to your SLA workflow: high-power UV and rapid convection heating cure general resins in ~60 seconds and engineering or biocompatible materials in minutes, delivering stronger, tougher, and more heat-resistant parts with repeatable results. Built for the Form 4L ecosystem, it combines a compact footprint, 45+ validated presets, and customizable time/temperature controls so teams can accelerate throughput, maintain material certifications, and minimize process variability.

Have a Question?

Your Ultimate Solution for Professional Post-Processing

Elevate your powder-based 3D printing post-processing with Fuse Blast, a fully automated cleaning and polishing solution. Seamlessly integrated into the Fuse Series ecosystem, Fuse Blast delivers fast, consistent results, cleaning a whole build chamber in just 15 minutes.

With optional polishing capabilities, you achieve smooth, semi-gloss, and dye-ready surface finishes, ensuring professional-grade parts every time. Say goodbye to manual labor and hello to streamlined post-processing with Fuse Blast.

Key Features & Benefits

Production-Scale, High-Power Curing

High-intensity UV light and controlled convection heating deliver fast, uniform curing for large SLA parts, improving strength, durability, and thermal performance.

Validated Material Presets

Pre-configured curing profiles ensure repeatable, material-specific results and help maintain mechanical properties and material certifications.

Fast Cycle Times

General resins cure in as little as one minute, reducing post-processing bottlenecks and increasing overall throughput.

Consistent, Reliable Results

Uniform light exposure and temperature control eliminate under- or over-curing, delivering predictable part quality across builds.

Simple, Scalable Workflow

An intuitive interface with customizable time and temperature settings supports everything from prototyping to production without added complexity.

Technical Specifications

Features	Form Cure L V2	Form Cure L V1	Form Cure V2	Form Cure V1
Printer Compatibility	Form 4L, Form 4BL, Form 4, Form 4B, Form 3/B/+, Form 2	Form 4, Form 4B, Form 3/B/+, Form 2	Form 4, Form 4B, Form 3/B/+, Form 2	Form 3/B/+, Form 2
Dimensions (W x D x H)	507 × 543 × 545 mm 20.0 × 21.4 × 21.5 in	690 x 540 x 445 mm 27.2 x 21.3 x 17.5 in	337 × 404 × 372 mm 13.3 × 14.0 × 15.9 in	262 x 262 x 340 mm 10.3 x 10.3 x 13.4 in Height when open: 640 mm (25.2 in)
Weight	40.0 kg 88.2 lb	24 kg 53 lb	12.1 kg 26.7 lb	5.6 kg 12.4 lb
Turntable Dimeter	404 mm 15.9 in	395 mm 15.6 in	235 mm 9.25 in	193 mm 7.6 in
Maximum Part Height	365 mm 14.4 in	320 mm 12.6 in	245 mm 9.64 in	185 mm 7.28 in
Maximum Cure Chamber Temperature	100 °C 212 °F	80 °C 176 °F	100 °C 212 °F	80 °C 176 °F
Light Source	96 multi-directional LEDs	45 multi-directional LEDs	13 multi-directional LEDs
LED Power	350 W	70 W	150 W	39 W
LED Radiant	120 W	36 W	50 W	9.1 W
LED Wavelength	405 nm	375 nm, 405 nm	405 nm	405 nm
Power Requirements	Input (NA): 100 – 125 VAC, 50–60Hz, 15 A Input (EU): 220 – 240 VAC, 50–60Hz, 8 A	Input (NA) 100 - 120 V VAC, 50-60 Hz, 15 A Input (EU) 220 - 240 V VAC, 50-60 Hz, 8 A	Input (NA) 100 - 120 V VAC, 50-60 Hz, 15 A Input (EU) 220 - 240 V VAC, 50-60 Hz, 8 A	90–240 V 6.0 A 50/60 Hz 144 W

A Premier Industrial Design Studio Leverages Formlabs

Vital Auto, a top-tier industrial design studio specializing in automotive design, serves major clients like Volvo, Nissan, McLaren, and Lotus.

They utilize Formlabs Form 3L SLA printers and Fuse 1 SLS printers for high-fidelity prototypes and end-use parts. Their materials range from Elastic 80A Resin for prototype door seals to Nylon 12 for rugged components like air ducts, all crafted with precision and expertise.

Keep On Learning

Formlabs Resources

Formlabs Is Here! SLA and SLS Printers

Read Article

MedTech Additive Manufacturing in Space

Read Article

Speed Up Medical Device PLM Processes

Read Article

Frequently Asked Questions

What is included with Fuse Blast?

Fuse Blast comes with the following accessories:

Transfer container
Control pedals
ESD wrist strap
7mm socket wrench
Blast orifice (3mm)
Blast orifice (4mm)
T-20 driver
Floor mat

Is Fuse Blast only for Formlabs?

No, you can use this de-powdering system for other powder-based technologies as well.

What is the smoothing option?

The smoothing option is a post-processing technique for smoothing the surface of 3D printed parts. It involves using an abrasive blasting process to remove layer lines and imperfections, resulting in a smoother finish on the part’s surface.

How does Fuse Blast benefit existing Formlabs 3D Printing users?

Users of other Formlabs 3D printing solutions can integrate the Fuse Blast Smoothing Option into their workflow by incorporating it as a post-processing step after printing. Once the desired parts are printed using Formlabs printers, they can be transferred to the Fuse Blast unit for smoothing. This process enables users to achieve a polished finish on their 3D-printed parts, enhancing their aesthetic appeal and functional performance.

Can I achieve professional-grade results with Fuse Blast without using Fuse Sift?

Yes, Fuse Blast allows you to clean parts extracted from the cake without prior de-powdering, reducing Fuse Sift time to 5-10 minutes. However, we recommend using Fuse Sift and Fuse Blast together for optimal powder management and part cleaning workflows.

Is polishing possible with Fuse Blast?

Yes, Fuse Blast can polish parts using specialty plastic media with the drop-in polishing upgrade. This feature will be available in H1 2024, allowing for a smooth, semi-gloss, and dye-ready surface finish.

How long does it take to post-process parts with Fuse Blast?

Typically, the post-processing time on the Fuse Series ecosystem ranges from 15 to 30 minutes, depending on factors like material used, part geometry and desired powder reclaim. This includes extracting parts, cleaning and optional polishing.

What is the labor requirement for operating the Fuse Blast?

Fuse Blast is an automated solution that minimizes manual labor. Users simply transfer parts from the Fuse Sift to the Fuse Blast, press the “Start” button, and let the system handle the rest. Manual cleaning modes are available for delicate or large parts.

Is the Fuse Blast ATEX certified?

No, ATEX certification is not required as the Fuse Blast is not intended for use in potentially explosive environments. However, it adheres to safety standards for dust containment and ventilation, ensuring a safe operating environment.
