SCANOLOGY TrackScan Sharp S
Built for Big Jobs
Scan large objects with unmatched speed, accuracy, and freedom—no targets required.
Scan Bigger, Move Faster
The SCANOLOGY TrackScan Sharp S redefines high-volume 3D scanning. Built for industrial-scale applications, this system eliminates the need for targets and enables fast, wireless scanning over an impressive 135 cubic meters. Whether capturing massive components or intricate details on large surfaces, TrackScan delivers precision, flexibility, and convenience in one complete system.
Why Choose SCANOLOGY TrackScan Sharp S?
- Up to 81 blue laser lines for fast scanning, with 17 additional lines for fine detail capture.
- No targets required—optical tracking system monitors the scanner’s position
- Wireless scanning and probing options
- High-resolution scanning for fine details
- Ideal for aerospace, automotive, and industrial-scale scanning
- Supports SCANOLOGY’s proprietary scanning and metrology software, such as ScanViewer, for data processing and analysis.
Unmatched Range and Resolution
Unmatched Range and Resolution
TrackScan Sharp S boasts a scanning volume up to 135 cubic meters. Its 25MP optical cameras allow you to capture detailed scans from up to 8.5 meters away—perfect for large machinery, vehicles, or assembly lines.
Fast, Targetless Scanning
The system captures 4.86 million points per second using 99 blue laser lines. Optical tracking eliminates the need for stickers or markers, reducing prep time and increasing efficiency on every scan.
Precision Without Compromise
Enjoy volumetric accuracy of 0.048 mm at 10.4 m³, backed by VDI/VDE and ISO certifications. Whether scanning reflective metals or complex forms, you’ll capture every detail with confidence.
Wireless Scanning & Probing
Operate wirelessly with the optional i-Probe 500 touch probe for capturing geometric features. Capture geometric features like holes and edges in a seamless, mobile workflow—ideal for inspections or manufacturing quality checks.

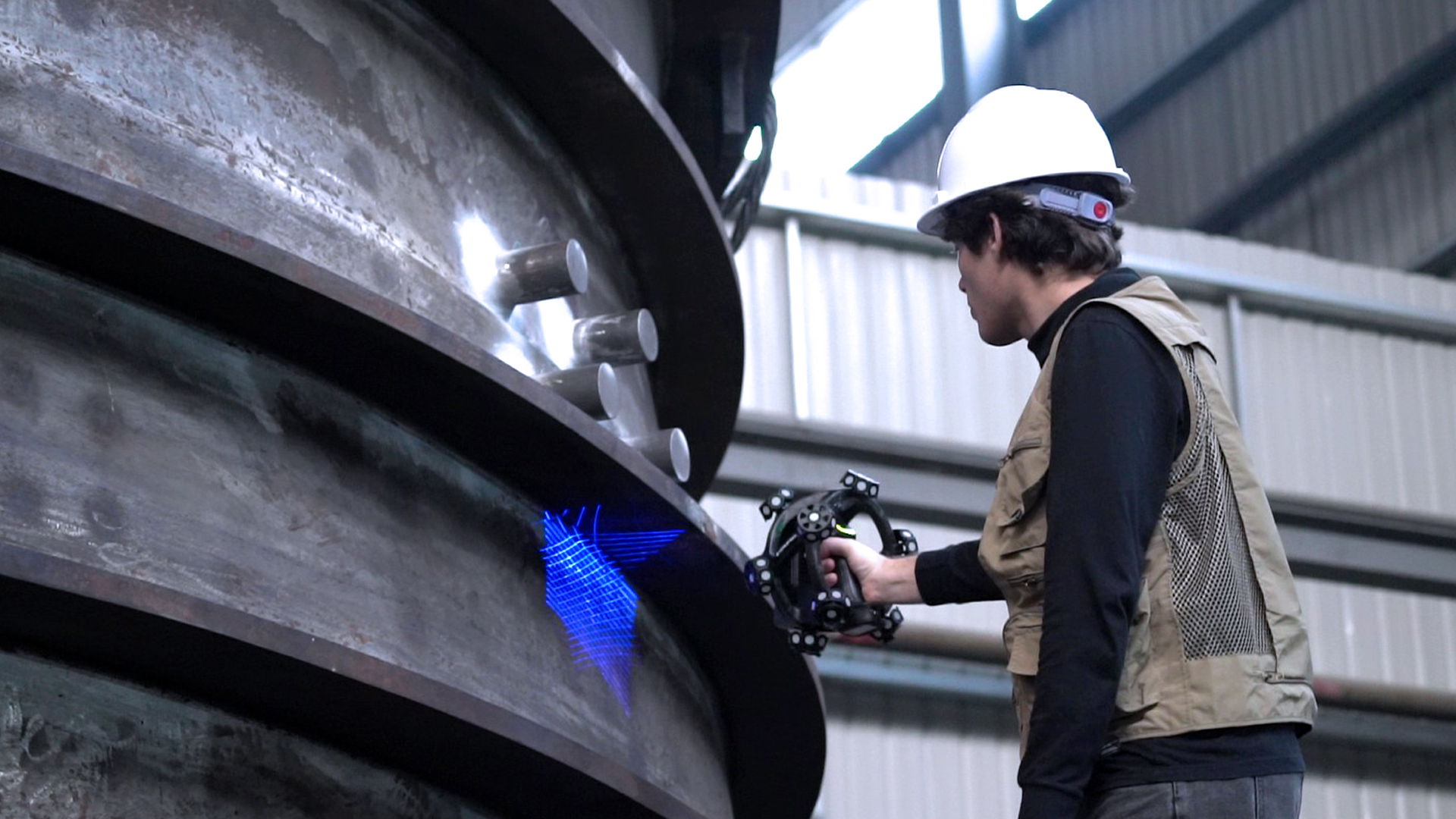

TrackScan Sharp S in Action
Optical 3D Scanning with TrackScan Sharp S
Discover how this advanced system revolutionizes large-scale measurement with targetless tracking technology and metrology-grade precision.
Key Features & Benefits
Wireless 3D Scanning
Collect and stream scan data over WiFi for maximum freedom.
High Resolution & Accuracy
High-resolution scanning with metrology-grade precision, suitable for capturing fine details on large-scale objects.
Adjustable Scanning Modes
Switch between grid, hyperfine, or single-line laser configurations.
Large Volume Coverage
Capture up to 135m³ with a single tracker; sync multiple trackers for even more.
Fast Data Capture
4.86 million points per second from 99 blue laser lines.
Targetless Optical Tracking
No targets needed—optical tracker monitors scanner position.
Mixed Scanning & Probing
Optional wireless touch probe for hybrid inspection workflows.
Technical Specifications
| Specification | Value |
|---|---|
| Laser Source | 81 Blue Laser Lines (standard mode) + 17 Blue Laser Lines (fine mode) – Class II |
| Mesh Resolution | High-resolution scanning optimized for capturing fine details on large-scale objects. |
| Volumetric Accuracy | Volumetric accuracy of 0.048 mm at 10.4 m³, certified under VDI/VDE 2634 standards. |
| Object Size Range | Optimized for large-scale objects, typically 1,000 mm and larger. |
| Measurement Rate | 4.86 million pts/sec |
| Field of View | Large field of view supporting scanning at distances up to 8.5 meters. |
| Depth of Field | Extended depth of field supporting scanning at distances up to 8.5 meters. |
| Tracking Method | Optical Camera with optional targets |
| Certifications | ISO 17025, VDI/VDE 2634 |
Frequently Asked Questions
The system uses external WNICs and onboard processors for wireless data transfer, enabling real-time 3D coordinate capture when connected to scanning software.
Blue lasers reduce noise and perform better on reflective surfaces like chrome or polished aluminum.
No. The system uses an optical tracker to locate the scanner. However, you can use targets in hard-to-see areas to improve tracking or align multiple scans.
Yes. The TrackScan can cover up to 135 cubic meters. For larger jobs, multiple trackers can be synced for seamless scanning.
You can use the optional wireless touch probe to complement your scans with exact point data for those features.
Excellence Beyond Hardware
Technology is powerful. Partnership makes it transformative. With Hawk Ridge Systems, you get both—cutting-edge scanning capability backed by North America’s premier engineering solutions team, dedicated to turning your investment into remarkable results.
Expert Support
Get a personalized consultation from Hawk Ridge’s scanning experts
Try Before You Buy
Test TrackScan on your own components
Comprehensive Training
Get your team operational quickly with personalized onboarding
Seamless Integration
We’ll help you connect with your CAD or inspection workflow
SCANOLOGY

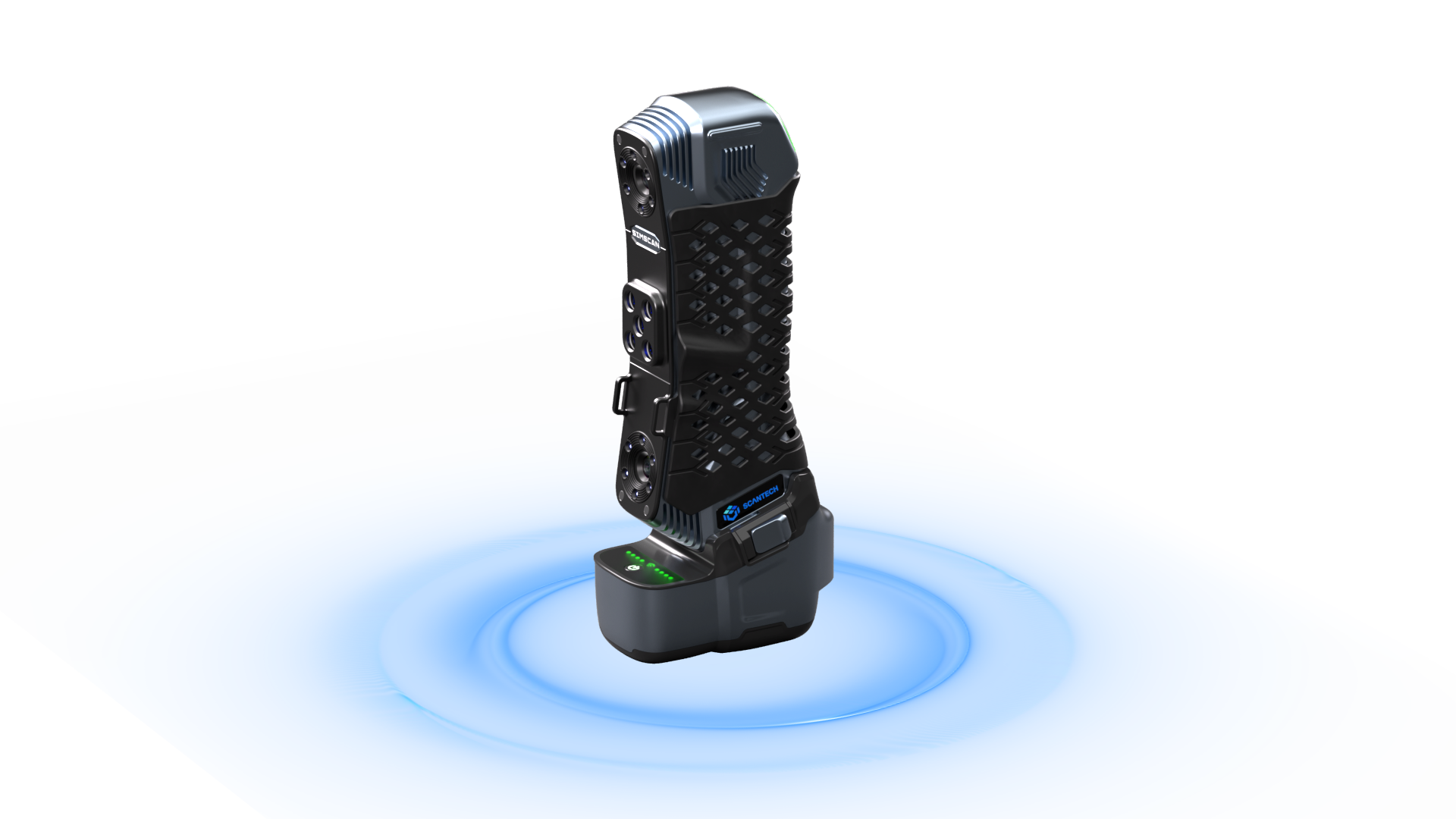

SCANOLOGY: SIMCSCAN-E
