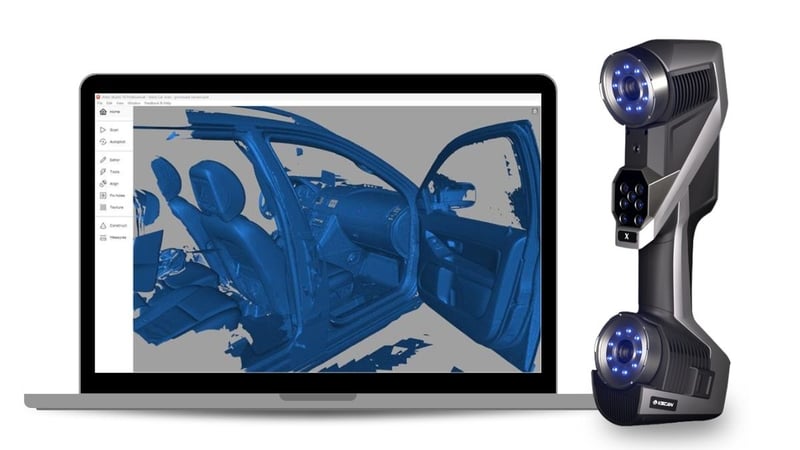

SCANOLOGY KSCAN-X
Take On the Biggest Jobs with Confidence
Portable laser scanning redefined with wide-view precision and seamless mobility.
Large-View Laser Scanning Made Simple
The KSCAN-X handheld blue laser scanner delivers a wide 1.8×2.6 m field of view, 84 crossing laser lines, and capture speeds up to 6.45 million points per second. Its large scanning area and reduced reliance on targets let you cover massive parts quickly and confidently — even on the biggest jobs.
Lightweight and easy to handle, the adjustable laser grid lets operators focus on key geometries from any angle. With a 180 FPS scanning speed and 0.1 mm resolution, the KSCAN-X captures fine details while maintaining accuracy — even on low-feature surfaces.
A wireless setup and onboard display make it easy to maneuver around parts and monitor scan progress in real time, all without being tethered to a computer.
Why Choose KSCAN-X?
- Real-time phone screen viewing and operation
- High-precision results for both large-scale and detailed measurements
- Dual power cycle for uninterrupted operation
- Short-distance camera design + Deep hole scanning
- Stable and high-speed data transfer
Carry Power, Not Weight.
Portable & Powerful
Designed to fit in your hand, you can scan for long periods of time without fatigue and the compact form makes it ideal for travel – the entire case can fit into a carry-on bag with room to spare.
No Surface Left Behind
Scan difficult surfaces, deep holes, and fine details using bespoke scanning modes. Grid pattern is ideal for larger areas, while hyperfine mode coaxes out maximum detail, and single line mode helps scan into deep holes & recessed areas.
Built to Last
The robust metal case construction place it among the most durable scanners ever made and a wide operating temperature range broadens potential environments & applications.
See the Invisible

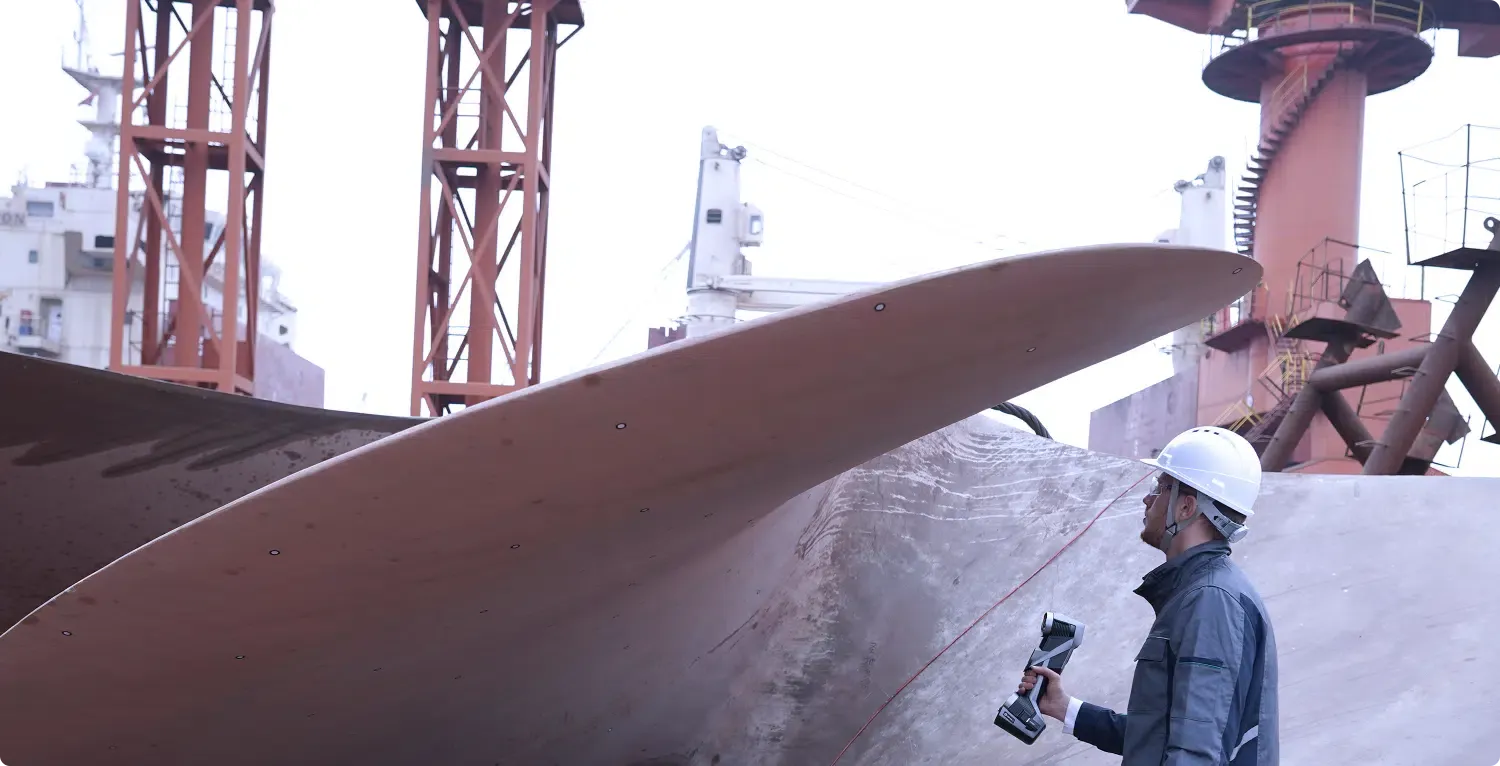

The KSCAN-X is perfect for large and challenging applications requiring high detail. With .075mm scanning accuracy, the KSCAN-X can scan large parts quickly.
KSCAN-X In Action
Precision Engineering Meets Portability
Watch the KSCAN-X capture large and challenging surfaces effortlessly—all while streaming data wirelessly in real-time for unrestricted movement around objects.
Key Features & Benefits
Scan complex and difficult surfaces using blue-laser technology and adjustable exposure that normally
would require preparation to capture.
0.1mm Feature Resolution
Create dense point-clouds and produce high-resolution mesh files for your large assemblies. With a resolution up to 0.1mm, small features like markings, text, and edges can be displayed clearly on the output file.
ISO and VDI/VDE-Certified
Certified for advanced metrology, create inspection reports reliably and repeatability, using the data
gathered. ISO17025 accreditation based on JJF1951 specification, VDI/VDE 2634 Part 3 Standard.
Blue-Laser Scanning with Multiple Capture Modes
Scan complex and difficult surfaces using blue-laser technology and adjustable exposure that normally would require preparation to capture. With two scanning modes, you can capture large areas of data with Grid pattern and then switch to Single Line for deep hole measurements.
Consistent Tracking and Accuracy
Using a target-based tracking system and up to 180 FPS capture speed, the KSCAN-X can maintain tracking with reduced amounts of targets needed for standard field-of-view scanners — allowing an operator of any skill to confidently use the scanner and capture all details of the object.
Ergonomic Design and On-Screen Information Display
Lightweight and comfortable grips allow you to hold the scanner and different angles without adding strain to users. And an onscreen display providing information on total data captured, scanning speed,
and resolution makes it easy to adjust settings without needing to be near a computer for feedback.
Larger Field of View
A standoff distance of 2.5 meters and field of view up to 1.8×2.6 meters allows the KSCAN-X to scan larger-sized objects quickly and see several targets at once to maintain tracking during the scanning
process.
Wireless Setup Capabilities
Able to utilize wireless USB’s to connect to computers remotely and send the scanner data to it for processing. Reducing the pain managing cords and limiting your ability to move around large parts quickly.
Technical Specifications
| Specification | Value |
|---|---|
| Laser Source | Blue Laser – Class II Eye Safe |
| 3D Point Accuracy | Up to 0.1mm |
| Scanning Accuracy | 0.03mm with medium distance scanning. 0.075mm with large distance scanning. |
| Volumetric Accuracy | 0.075mm + 0.01mm/m |
| Object Size | Medium-Large |
| Field of View | 2600 x 1800 mm |
| Depth of Field | 2500 mm |
| Scanning Speed | 180 FPS |
| Tracking Method | Target-Based |
| Operating Environment | -10 degree C to 40 degree C. Fanless Device suitable for workshops |
| Certifications | ISO 17025 – based on VDI/VDE 2634, JJF 1951 specification |
Frequently Asked Questions
While the scanner does require targets to maintain tracking – it doesn’t always have to be on the part.
As long as enough targets are within view on or around the part the scanner will continue to track its
position and capture data. With the KSCAN-X you can utilize 12mm targets and farther distances
between them compared to other hand-held laser devices.
It is possible, the resolution of the data can be captured up to 0.1mm which is suitable for smaller features on small parts. The different scanning methods and distances allow you to find a suitable setup
to capture smaller parts.
With customizable command buttons, the device will switch the laser grid between the two scanning modes with the scanners main buttons. The Grid Line Mode captures large amounts of data fast and a Single Line mode to capture deeper into pockets or thin-edges.
Due to the device using a Blue-Laser the KSCAN-X can scan shiny, dark, or pocketed surfaces easier.
These normally would require applying a dulling or opaque spray to properly capture. It also doesn’t require any re-calibration to switch between the different surfaces.
Yes, target-based laser scanning is excellent at capturing simple sheet metal surfaces with a high level of accuracy. With the multiple scanning modes thin edges can be captured and then aligned with other
scans using targets on the part or matching geometry.
