High-fidelity full-color prototyping

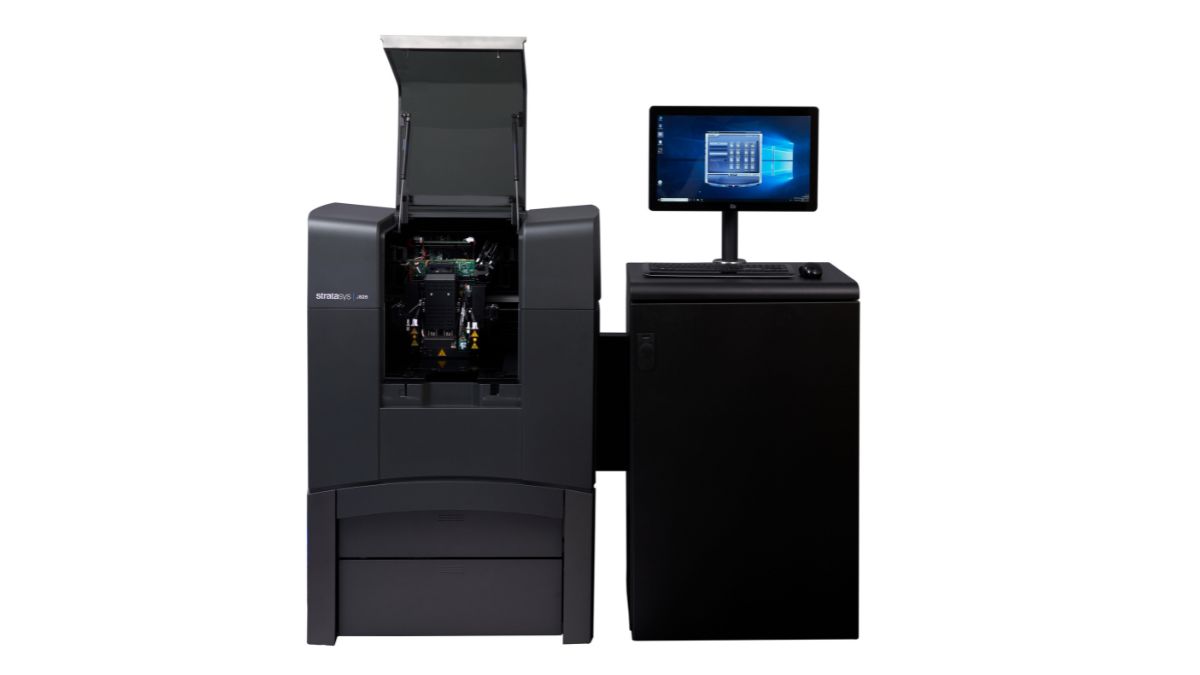

Stratasys J826™ Prime 3D Printer
The J826 Prime gives product design teams greater flexibility with expanded material combinations and realistic color capabilities for demanding prototypes and client presentations.
High-Fidelity PolyJet Prototyping for Industrial Design and Engineering
The Stratasys J826 Prime expands the capabilities of PolyJet prototyping for organizations that need exceptional surface quality, realistic color output, and multi-material flexibility. Designed for professional product development environments, the system produces highly detailed prototypes that closely resemble finished products.
By combining color realism with multi-material printing, the J826 Prime allows teams to simulate product features such as flexible components, transparent housings, and multi-texture surfaces within a single build using up to seven different materials. This enables more accurate design validation and improves collaboration between design, engineering, and marketing teams.
With the ability to create prototypes that visually and functionally replicate final products, the J826 Prime helps teams make better decisions earlier—reducing costly revisions later in the development cycle.
Key Features & Benefits
Advanced Color and Material Realism
Produce prototypes with accurate color, transparency, and material properties.
Seven-Material Simultaneous Printing
Combine rigid, flexible, and transparent materials in a single build.
High-Resolution Detail
Create smooth surfaces and precise geometries ideal for design validation.
Efficient Rapid Prototyping
Accelerate development cycles by producing complex prototypes in a single print.
Technical Specifications
| Features | Stratasys J826 Prime |
|---|---|
| Build Volume | 19.3" × 15.4" × 7.9" (X, Y, Z) 490 × 390 × 200 mm |
| Layer Thickness | 18–27 microns |
| Model base materials available | Vero family, Agilus30, Digital ABS Plus, ToughONE, DraftGrey |
| Maximum materials loaded | Up to 7 materials simultaneously |
| Color capability | Full-color PolyJet |
| Print technology | PolyJet |
| Overall size of machine | 55.1" × 49.2" × 59" |
| Weight of machine | ~518 lbs / 235 kg |
| Power requirements | 200–240 VAC |
Frequently Asked Questions
The J826 Prime is ideal for concept modeling and prototyping of medium sized parts where quality, multiple materials, and full color (including Pantone validated colors) are important.

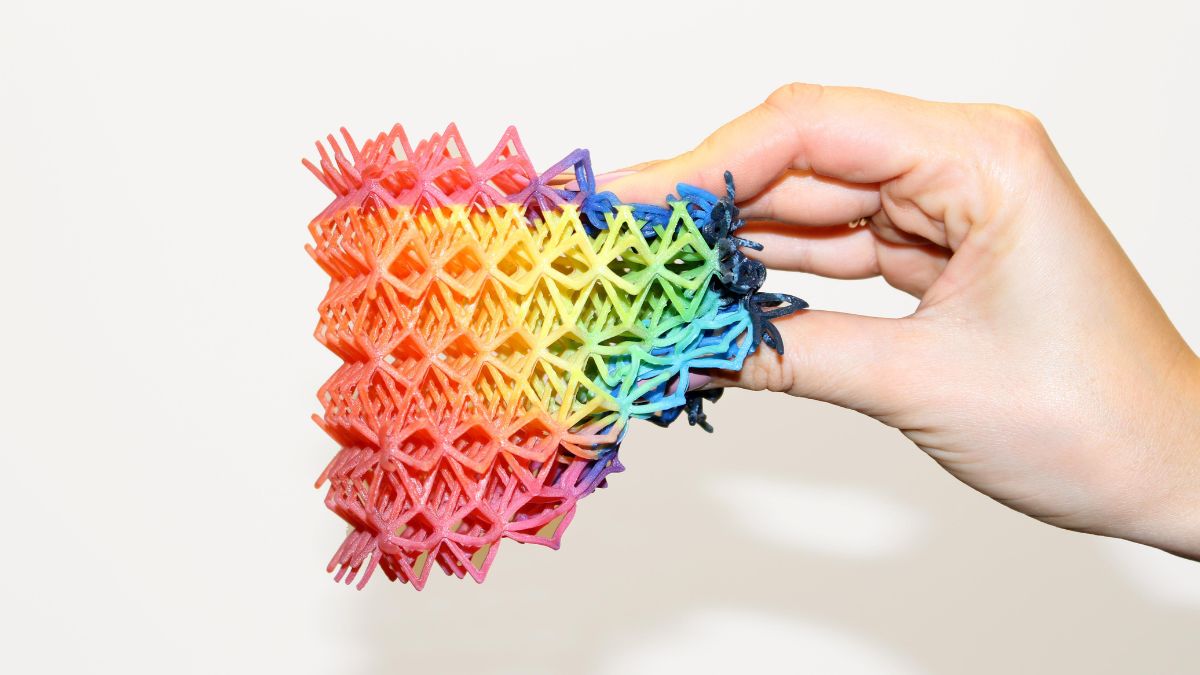

Yes, the J826 printer can replicate flexible, rigid, and transparent materials in a single build.
The J826 Prime is ideal for industrial designers working in industries where the look and feel of prototypes is vital – such as consumer products, medical, and automotive.
